Wheel ED=50 ID=6 T=19

This is a machine part used in the V1's chassis and squeegee assemblies. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #2 in the chassis assembly:

and part #1 in the squeegee assembly:

Squeegee back rubber (pu 40Sh)

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #4B:

Squeegee front rubber (pu 40Sh)

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

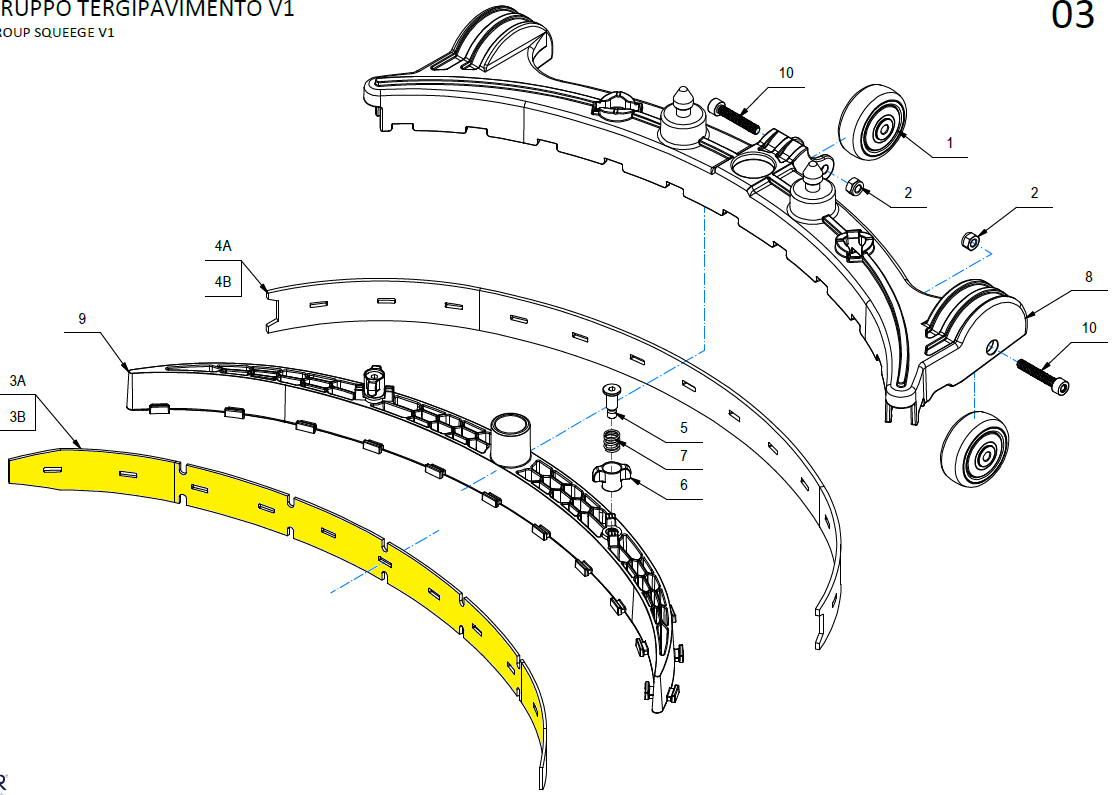

This part can be seen in the below parts diagram labelled as part #3B:

Squeegee front rubber (linatex 38Sh)

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #3A:

Squeegee back rubber (linatex 38Sh)

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #4A:

Knob pin ED=11.8 ID=7 M=6 H=22

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #5:

Squeegee locking knob

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #6:

Compression spring ED=10.5 FD=1.2 L=11.3

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

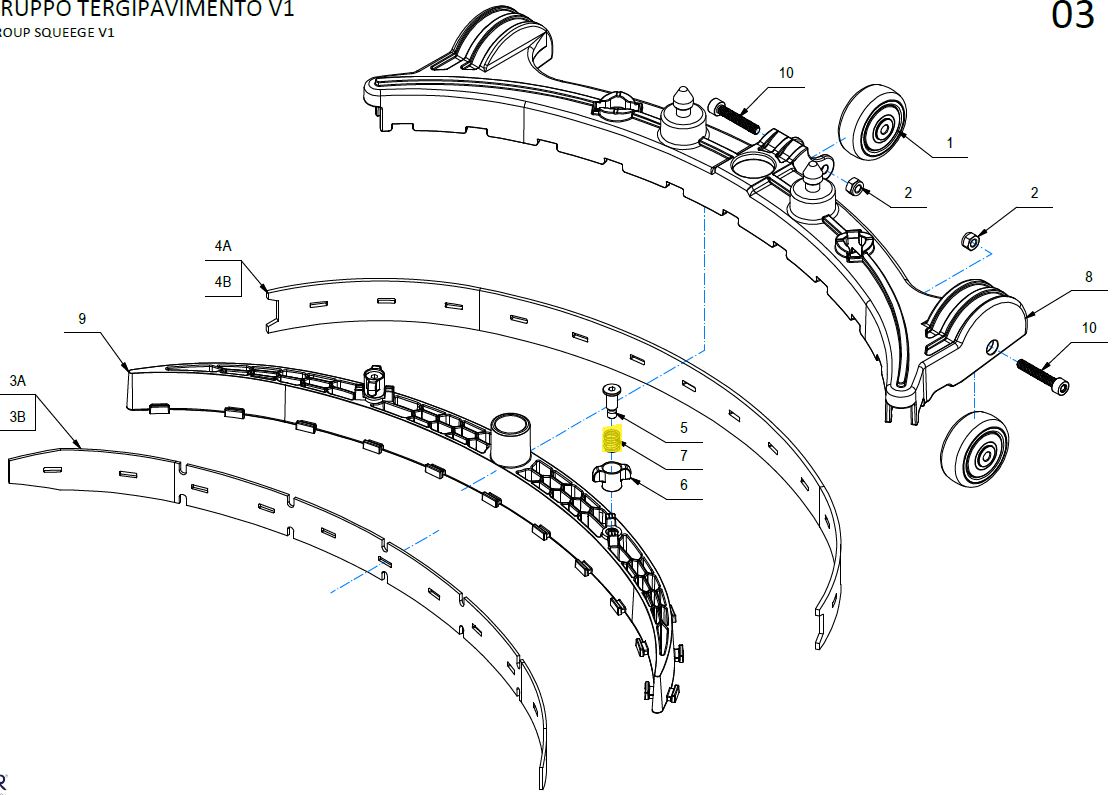

This part can be seen in the below parts diagram labelled as part #7:

Upper squeegee body

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

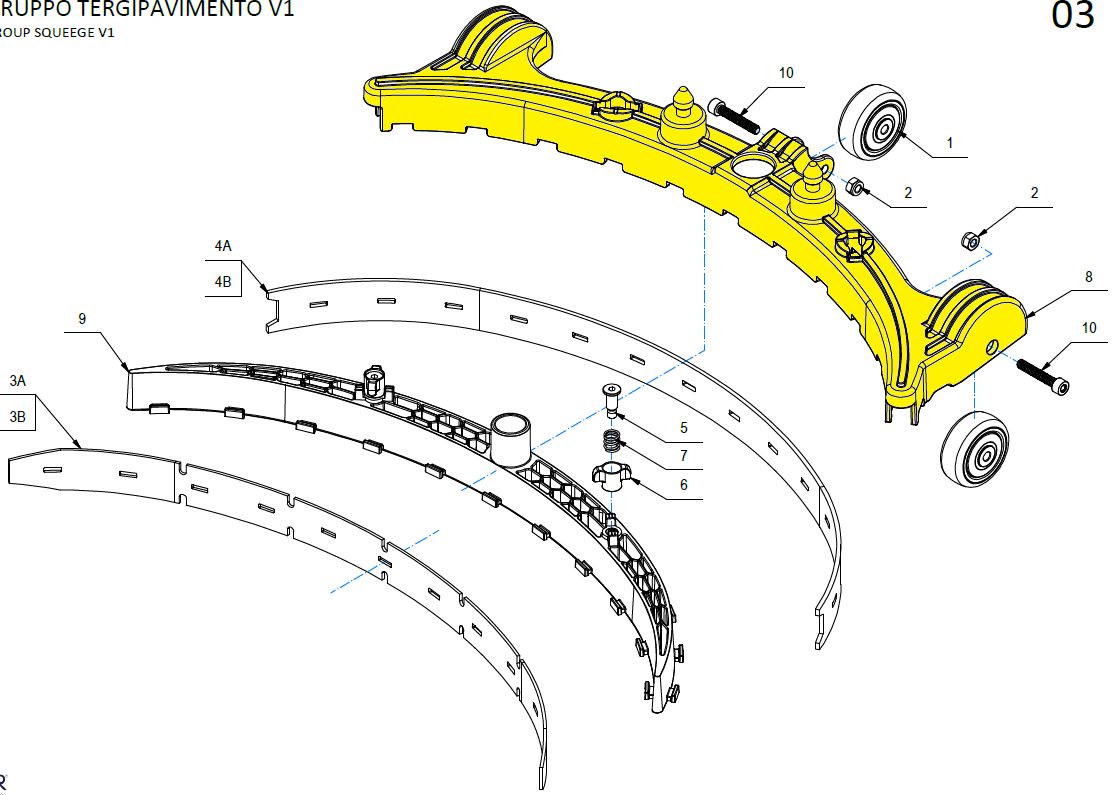

This part can be seen in the below parts diagram labelled as part #8:

Lower squeegee body

This is a machine part used in the V1's squeegee assembly. Click the image below to access more V1 parts drawings.

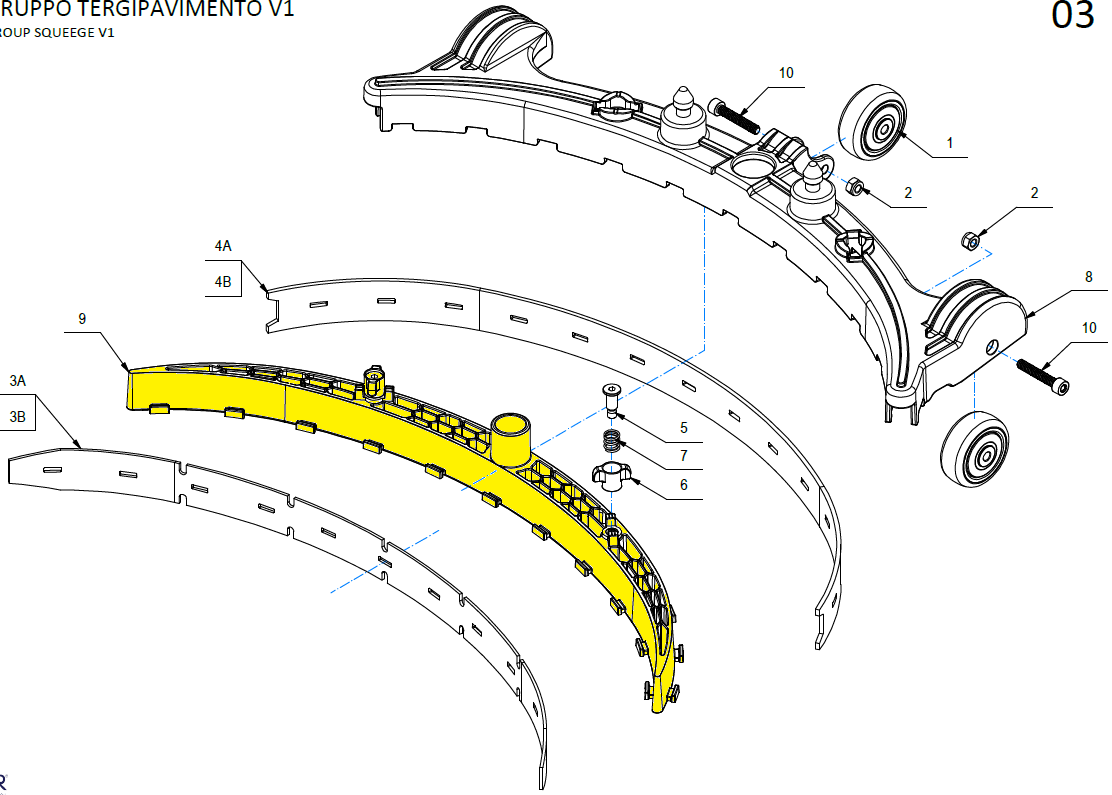

This part can be seen in the below parts diagram labelled as part #9:
