Spring clip

This is a machine part used in the V1's recovery and solution tank assemblies. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #1 in the recovery tank assembly:

and part #1 in the solution tank assembly:

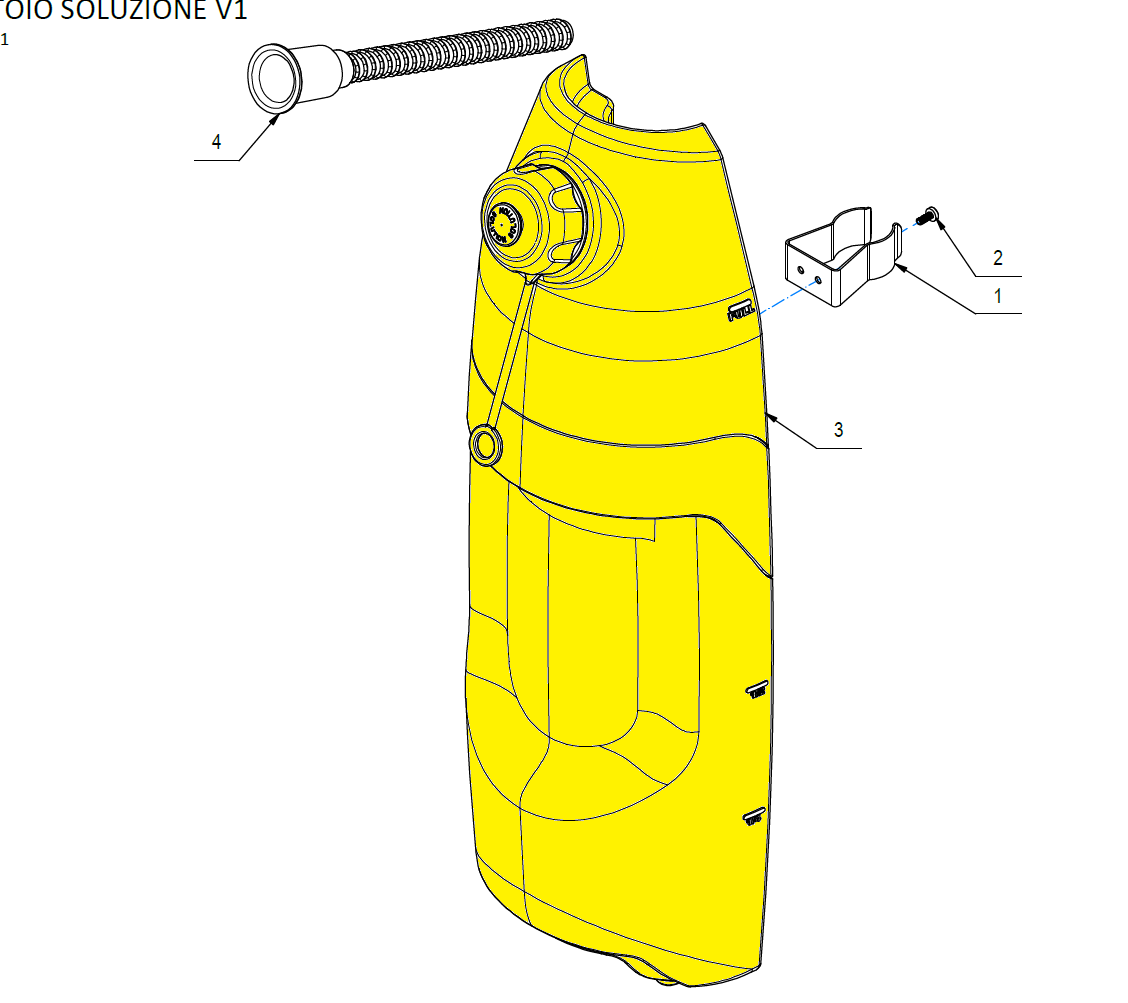

Preassembly solution tank

This is a machine part used in the V1's solution tank assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #3:

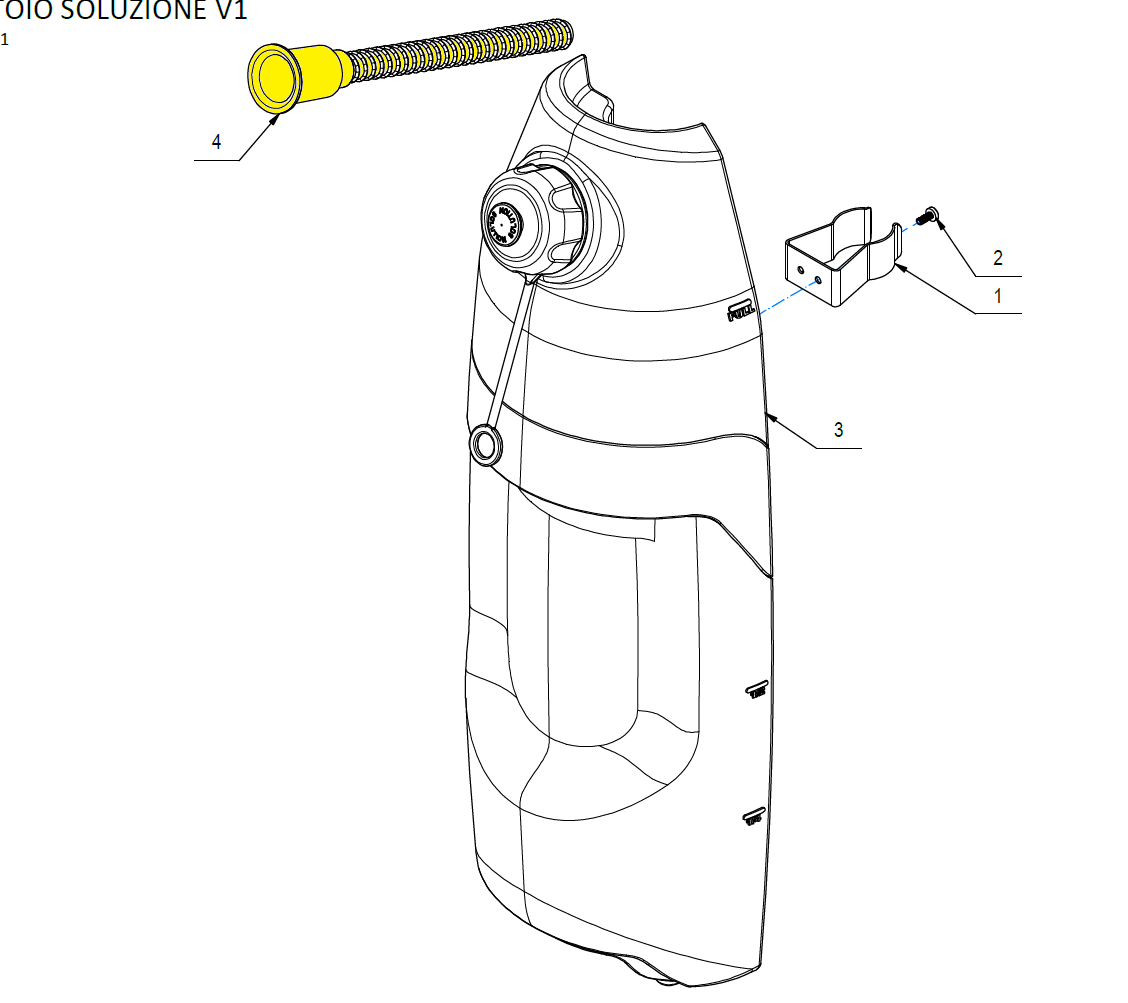

Filling tube ED=18 ID=13 L=530

This is a machine part used in the V1's solution tank assembly. Click the image below to access more V1 parts drawings.

This part can be seen in the below parts diagram labelled as part #4:
